# Decay test tower

## 1 Test description

This test uses a cantilever beam model with a constant rectangular hollow cross section fixed onto the ground. Gravity and aerodynamic loads are disabled.. The model uses Euler-Bernoulli elements.

The following load cases are tested
1. Decay no damping
2. Mass only
3. Stiffness only
4. Mass only 2nd mode
5. Stiffness only 2nd mode
6. Rayleigh first mode
7. Rayleigh second mode
8. Mass from coefficients
9. Stiffness from coefficients
10. Rayleigh from coefficients

## 2  Model

### 2.1 Model description

The model used for this test is shown in the figure below:

The model has an homogeneous rectangular cross section of height
$$h=5\text{ m}$$
(dimension in the global x-direction), width
$$b=2\text{ m}$$
(dimension in the global y-direction) and thickness
$$t=0.03\text{ m}$$
In this configuration, the first principal axis of the cross section is aligned with the x-direction and the 2nd principal axis is aligned with the y-direction. The second moments of area in the x and y direction are thus
$$I_x = \frac{hb^3-(h-2t)(b-2t)^3}{12}=3.276\cdot10^{-1}\text{ m}^4$$

and
$$I_y = \frac{bh^3-(b-2t)(h-2t)^3}{12}=1.344\text{ m}^4$$

The length of the model is
$$l=87.6\text{ m}$$
., and the structure is divided into 100 elements.

The density of the material is
$$d=8500\text{ kg}\cdot\text{m}^3$$
. This gives a linear mass
$$m=(bh-(b-2t)\cdot(h-2t))\cdot d=3539\text{ kg}\cdot\text{m}^{-1}$$
The material has an Elastic modulus
$$E=2.1\cdot10^{11}\text{ Pa}$$

The first and second eigenperiods of the structure are given by the following equations (Biggs (1964)):
$$T_1 = \left(\frac{l}{0.597\pi}\right)^2\sqrt{\frac{m}{EI_x}}=3.109\text{ s}$$

and
$$T_2 = \left(\frac{l}{0.597\pi}\right)^2\sqrt{\frac{m}{EI_y}}=1.535\text{ s}$$
We note
$$\omega_1=2\pi/T1$$
and
$$\omega_2=2\pi/T_2$$
the two first eigenfrequencies of the structure.

The first eigenmode corresponds to the structure moving in the y-direction, and the second eigenmode corresponds to the structure moving in the x-direction, as illustrated by the figure below:

In this test, the elements are modeled as Euler-Bernoulli beams. No aerodynamic or gravity loads are applied to the model.

### 2.2  Initial conditions

For each load case, at the beginning of the simulation
$$t=0$$
, all nodes are constrained to move at a given velocity (and the constraint is then removed). The velocity applied at each node is scaled with the displacement of that node for a given mode shape, and normalized so that the maximum velocity is
$$1\text{ m}\cdot{s}^{-1}$$
. This ensures that the motion of the model will be purely harmonic, i.e. if the 1st mode shape is chosen to scale the velocities, only 1st mode motion will be observed in the simulation.

## 3 Analytical solution

### 3.1 Decay no damping

in this load case, no damping is applied, and the first mode shape is used to define the initial conditions. The top node of the structure is the one that will experience maximum displacement, so the velocity at that node is expected to oscillate between
$$1\text{ m}\cdot{s}^{-1}$$
and
$$-1\text{ m}\cdot{s}^{-1}$$
with a period
$$T_1$$
. The velocity of the top node is thus expected to vary as
$$v_y(t) = \cos(\omega_1t)$$
The expected displacement of the top node will thus be
$$d_y(t)=\frac{1}{\omega_1}\sin\left(\omega_1t\right)$$

The time series for the displacement is given in the figure below:

### 3.2 Mass only

In this load case, we apply the mass term of Rayleigh damping (see How to use Rayleigh damping). We set the damping ratio for the first mode
$$\xi_1$$
to be 1%, and we use the 1st mode as initial conditions. Therefore, we expect the velocity to decay as
$$v_y(t)=e^{-\xi_1\omega_1t}\cos(\omega_1t)$$

The expected displacement of the top node will thus be
$$d_y(t)=e^{-\xi_1\omega_1t}\frac{\sin(\omega_1t)-\xi_1\cos(\omega_1t)}{(\xi_1^2+1)\omega_1}$$

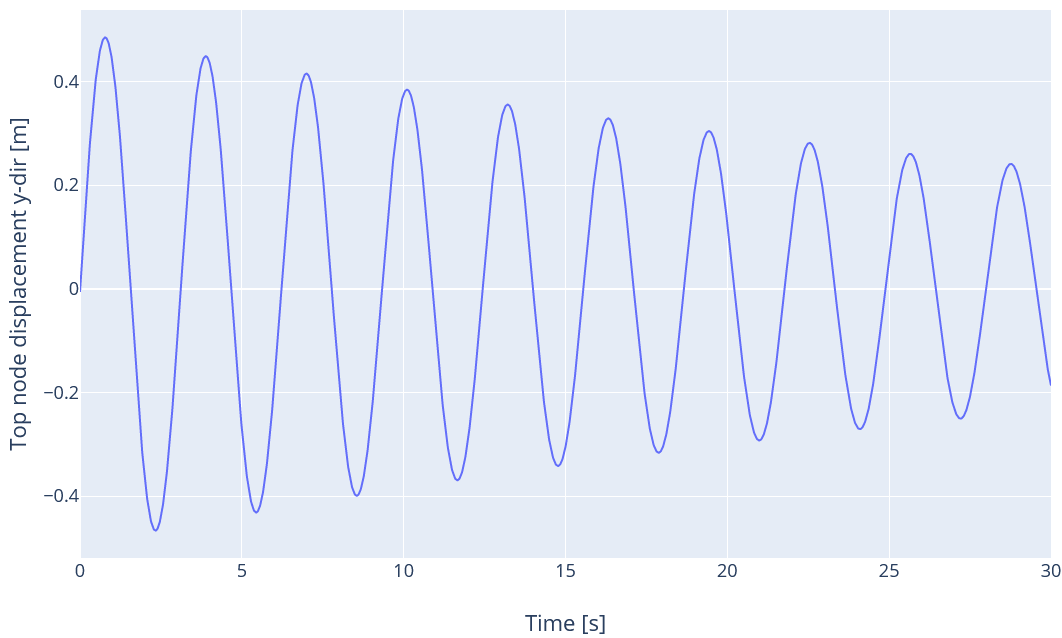

The time series for the displacement is given in the figure below:

### 3.3 Stiffness only

This load case is similar to the previous one, but we use only the stiffness term of Rayleigh danping instead of the mass term. The damping ratio is still set to 1% for the first mode, thus we expect the same displacement as in the previous case.

### 3.4 Mass only second mode

In this load case, we use the second mode shape as initial conditions. Therefore we only expect 2nd mode motion, and displacements will only be in the x-direction. The damping ratio for the first mode
$$\xi_1$$
is still 1%.
If only the mass term of Rayleigh damping is considered, the damping ratio for a given frequency
$$\omega$$
is given by
$$\xi(\omega)=0.5\frac{\mu}{\omega}$$

where
$$\mu$$
is the mass coefficient (see How to use Rayleigh damping). By inserting
$$\xi_1$$
and
$$\omega_1$$
in this equation, we find that the expected damping ratio for the second mode is
$$\xi_2 = \xi_1\frac{\omega_1}{\omega_2}=0.49\%$$

The expected displacement of the top node is thus
$$d_x(t)=e^{-\xi_2\omega_2t}\frac{\sin(\omega_2t)-\xi_2\cos(\omega_2t)}{(\xi_2^2+1)\omega_2}$$

The time series for the displacement is given in the figure below:

### 3.5 Stiffness only second mode

The same initial conditions as the previous case are used here. if only the stiffness term of Rayleigh damping is used, we have
$$\xi(\omega)=0.5\lambda\omega$$

Similarly to what was done in the previous load case, the expected damping ratio for the second mode is
$$\xi_2 = \xi_1\frac{\omega_2}{\omega_1}=2.0\%$$

The expected time series for the displacement is given in the figure below:

### 3.6 Rayleigh first mode

In this load case, we apply both the mass and stiffness terms, and we use the first mode as initial conditions. We set the parameters of Rayleigh damping such that the damping ratio for a period of 3 s is 1% and the ratio for a period of 0.3 s is 2%. We can then calculate the mass and stiffness coefficients (see How to use Rayleigh damping):
$$\mu = 0.03384\text{ rad}\cdot\text{s}^{-1}$$
$$\lambda = 0.001833\text{ s}\cdot\text{rad}^{-1}$$
The damping ratio for the first mode is thus
$$\xi_1=0.5\left(\frac{\mu}{\omega_1}+\lambda\omega_1\right)=1.02\%$$

Therefore, we expect the top node dispoacement in the y-direction to be
$$d_y(t)=e^{-\xi_1\omega_1t}\frac{\sin(\omega_1t)-\xi_1\cos(\omega_1t)}{(\xi_1^2+1)\omega_1}$$

The time series for the displacement is given in the figure below:

### 3.7 Rayleigh second mode

This load case is similar to the previous one, but the second mode is used for initial conditions. The damping ratio for the second mode will be
$$\xi_2=0.5\left(\frac{\mu}{\omega_2}+\lambda\omega_2\right)=0.79\%$$

The time series for the displacement is given in the figure below:

### 3.8 Mass from coefficients

In all the previous load cases, the input was a damping ratio and a corresponding period, and those inputs enabled the calculation of the mass and stiffness coefficients. It is also possoble to specify directly the coefficients. In this load case, we only consider the mass term and set the mass coefficient as
$$\mu = 0.05\text{ rad}\cdot\text{s}^{-1}$$
. We use te first mode as initial conditions.
The damping ratio for the first mode is then
$$\xi_1 = 0.5\frac{\mu}{\omega_1}=1.23\%$$

The time series for the displacement is given in the figure below:

### 3.9 Stifness from coefficients

This load case is similar to the previous one but we only consider the stiffness term and set the stiffness coefficient as
$$\lambda = 0.05\text{ s}\cdot\text{rad}^{-1}$$
We use te first mode as initial conditions.
The damping ratio for the first mode is then
$$\xi_1 = 0.5\lambda{\omega_1}=5.05\%$$

The time series for the displacement is given in the figure below:

### 3.10 Rayleigh from coefficients

This load case is similar to the previous one but we consider both the stiffness and the mass  term and set the stiffness and mass coefficient as
$$\mu=0.05\text{ rad}\cdot\text{s}^{-1}$$
and
$$\lambda=0.05text{ s}\cdot\text{rad}^{-1}$$
, respectively. We use te first mode as initial conditions.
The damping ratio for the first mode is then

$$\xi_1=0.5\left(\frac{\mu}{\omega_1}+\lambda\omega_1\right)=6.29\%$$

The time series for the displacement is given in the figure below:

## 4 Results from the regression tests

For each load case, the pass/fail criteria for the displacement is defined as follow: the maxima of the whole time series produced by Ashes are found, and then the periods between two consecutive maxima are calculated. If either the maxima or the periods of the results produced by Ashes are not within 1% of those from the analytical solution, the test is considered failed.

The report for this test can be found on the following link:
