All offsets have to be zero at the root
When importing a new blade, you can choose to import a
Blade structure file,to define the structural properties of the cross sections (see
Blade database). All the offsets (i.e. the offset of the
Elastic center, the
Mass center and the
Shear center) of the root element have to be 0.

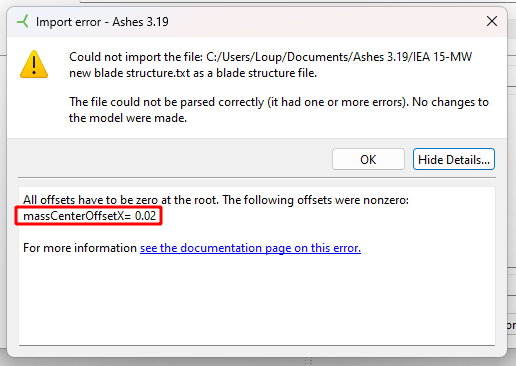

If any of the offsets are not set to 0, you will get the following error message:
The error message tells you what are the offsets that were found to be non-zero. Simply set all the offsets to 0 to solve this issue.
