Floater - Semi-submersible

Semi-submersibel floaters are well-known in the offshore oil and gas industry and are becoming popular also for floating wind turbines.

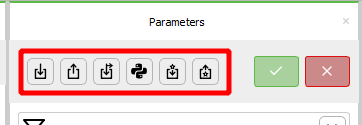

The icons highlighted in the figure below correspond to the different Part actions available for the Floater - Semi-submersible support section, and are explained from left to right.



  •  import a text file. The format of the text file is explained in the Support section files section
  •  export the text file corresponding to the current tubular tower
  •  import a file containing a load history. The format of the file is explained in the Load history file section
  •  applied loads calculated with a python script. More details are given in Section 2 of the Support structure document
  •  import a Craig-Bampton superelement
  •  export the mass, damping and stiffness matrices

The following parameters are available for a Floater - semi-submersible support section

General

Input file

The file to be imported to generate the support section. Import (in batch) by pressing the 'Import a support section from file' button in the action button collection to the right. This parameter (and this text) can only be visible in the batch (and not anywhere in the Time simulation window).

To import a support section in the Time simulation window, the 'Import a support section from file' action button must be used. Correspondingly, a support section can be exported to file in the time simulation window by using the 'Export the support section to file' action button. In batch the same buttons are placed to the right of the 'normal' parameters.


If the file is changed, moved, or removed after the import this will not affect the support section. For a change in the file to be effective the file must be imported again.

  • Default value:
  • Unit:

Scaling scheme

Scheme for scaling of this support section only (i.e. not the complete support structure - the complete support structure can be scaled on the Support structure part).

This parameter is only shown if the Wind turbine's 'Scaling scheme' parameter is set to 'Local scaling'.


A support section imported from file cannot be scaled. Thus, this parameter is never shown if the support section is imported from file.


Options:

Parent (default):

The scaling factor is set equal to the scaling factor for the whole Support structure.

Override:

A scale factor (set by you) for this section only (i.e. the scale factor set for the support structure is overridden).

Scaling factor

The geometry of this section of the support structure defined by parameters and/or files will be scaled by this factor.


  • Default value: 1
  • Unit:
  • Range: 0.001 — 1000

Height

The height of this section of the support structure. The height also takes into consideration any part below the seabed/ground, e.g. the piles on a truss tower.

If the height is set so low that the top of the section is below the sea surface, the set height is overruled and increased automatically so that the top is at the surface.

  • Default value: 100
  • Unit: $\text{m}$
  • Range: 1 — 1000

Material

The material used for this sub section of the support structure.

  • Default value: Steel
  • Unit:

Maximum element length

The maximum length a generated frame element can have, i.e. the elements will have this length or shorter.


  • Default value: 5
  • Unit: $\text{m}$
  • Range: 0.01 — 1000

Load histories file

The file adds load (time) histories to one or more nodes of the support section. The node names in the file must be found in the support section. The history can either be a force or moment history. If it is a moment history, the node name must be followed by any other string than 0 (i.e. the line contains two strings). An example of a load histories file can be found in the Examples folder. Open it from the menu: Help | Open examples folder. Make a copy of this file and then adapt it to the support section.

Note: A load histories file can only be used when the support section has been imported from file. You can right-click the support section and select Export to file to create a file that you can import again (by right-clicking the support section).


  • Default value:
  • Unit:

Potential flow

WAMIT .1 table

The WAMIT .1 table defined in the .1 file. Note that Ashes assumes each column has a column title on the first row, modify your files so they have column titles.


  • Default value:
  • Unit:

WAMIT .1 table file path

The file path to the WAMIT .1 table. Only used in batch. If set, the WAMIT .1 table is imported from this file.


  • Default value:
  • Unit:

WAMIT .3 table

The WAMIT .3 table defined in the .3 file. Note that Ashes assumes each column has a column title on the first row, modify your files so they have column titles.


  • Default value:
  • Unit:

WAMIT .3 table file path

The WAMIT .3 table file path. Only used in batch. If set, the WAMIT .3 table is imported from this file.


  • Default value:
  • Unit:

WAMIT .12D table

The WAMIT 12D table defined in the .12D file. Note that Ashes assumes each column has a column title on the first row, modify your files so they have column titles.


  • Default value:
  • Unit:

WAMIT .12D table file path

The WAMIT .12D table file path. Only used in batch. If set, the WAMIT .12D table is imported from this file.


  • Default value:
  • Unit:

Characteristic length

The characteristic length used to compute potential flow loads.


  • Default value: 1
  • Unit:
  • Range: 0 — 1e+08

Apply to node option

Specifies if the potential flow loads should be applied to the node closes to center-of-mass, or if the node is specified by the user.


Options:

Node closest to center-of-mass (default):

The loads will be applied to the node closest to the center-of-mass.

User-defined:

The node is specified by the user.

Node name

The name of the node where potential flow loads are to be applied. The name does not include the word "Node", but rather the string after "Node" (which can be a number but also just text). You can find a node's name by right-clicking the structure.


  • Default value:
  • Unit:

Mass and ballast

Ballast scheme

The ballast of the floater can be set either explicitly or implicitly. If explicitly (Set ballast mass), then the mass does NOT include any water filling if present. If implicitly, then the ballast mass is found either by setting the total mass of the floater or by setting the ballast as a fraction of the maximum buoyancy of the floater. If ballast mass is found from total mass then any water filling IS taken into account. If ballast mass is found based on maximum buoyancy then any water filling IS NOT taken into account.


Options:

Set ballast mass:

The ballast is set explicitly. This is NOT included any water filling if present.

Set total mass (default):

The ballast mass is calculated from the given total mass and the structural mass. If the floater is water filled then the mass of the water is substracted when calculation the ballast mass.

Ballast as fraction:

The ballast mass is calculated as a fraction of the maximum buoyancy of the floater. The maximum buoyancy can be found under the Part information tab. This percentage does NOT include any water filling if present.

No ballast:

No ballast is added.

Ballast as fraction

The fraction of the ballast mass (NOT incl. water filling) as a percentage of the maximum buoyancy.


  • Default value: 65
  • Unit: $\text{%}$
  • Range: 0 — 100

Ballast mass

The ballast mass of the floater. This parameter is shown only if the parameter Ballast scheme is set to Set ballast mass.

Note: If the floater is water filled, the mass of the water is not included in this mass

  • Default value: 0
  • Unit: $\text{kg}$
  • Range: 0 — 9.9e+07

Total mass

The total mass of the floater, not including mooring and tubular tower(s). The ballast mass is calculated as the total mass minus the structural mass (and waterfillling if present). If the total mass is set lower than the sum of the structural mass and water filling, then the total mass is increased to this sum and ballast mass is set to 0. This parameter is only visible if the parameter Ballast scheme is set to Set total mass


  • Default value: 0
  • Unit: $\text{kg}$
  • Range: 0 — 9.9e+07

Ballast distribution

The fraction of the ballast mass (in percent) at the lower ballast point(s). The rest is put at the upper ballast point(s). The location of the lower and upper ballast points are set by the respective floater types.


  • Default value: 80
  • Unit: $\text{%}$
  • Range: 0 — 100

Balance ballast

Automatically distribute the ballast so that the mass center remains at the same position in the horizontal plane.


  • Default value: False
  • Unit:

Ballast fore-aft offset

Offsets the mass center of the ballast.


  • Default value: 0
  • Unit: $\text{m}$
  • Range: -1e+07 — 1e+08

Water filling etc.

Is water filled

Decides if all members of the support section are water filled to the mean sea level or not. If you want a different water filling (e.g in columns but not in braces) this must be done by specifying this in a text file and importing.

  • Default value: 0
  • Unit:

Has growth

Decides if the support section has marine growth. If checked, the growth parameters are shown.

  • Default value: 0
  • Unit:

Level

The level up to which there is marine growth. If there is marine growth then all members below MSL will get growth. Additionally, members up to this level above the MSL will get growth.This parameter is only visivble if the Has growth parameter is checked.

Growth level is relative to Mean sea level (MSL).

  • Default value: 2
  • Unit: $\text{m}$
  • Range: 0 — 100

Thickness

The (average) thickness of the marine growth.

  • Default value: 0.05
  • Unit: $\text{m}$
  • Range: 0.001 — 1e+06

Density

The density of the marine growth.

  • Default value: 1325
  • Unit: ${\text{kg}} \over {\text{m}^3}$
  • Range: 0 — 1e+06

Buoyancy tuning factor

All buoyancy loads are multipled (tuned) with this factor. Typically, it is used to make the total buoyancy exactly match a given number. E.g. can account for overlapping members giving double buoyancy. This value is typically calculated manually by you as the fraction between the specified (given) static buoyancy and the buoyancy calculated by Ashes (using a factor of 1.0).


  • Default value: 1
  • Unit:
  • Range: 0 — 10

Configuration

Number of modules

The semisub can have one or more modules. The minimum number is 1 and the maximum is 6.

  • Default value: 1
  • Unit:
  • Range: 1 — 6

Tubular tower pattern

A floater has one or more tubular tower(s) on top. The towers can be placed on offset columns or on center columns

Options:

Offset columns:

Place towers on offset columns.

Center columns (default):

Place towers on center columns.

Number of corner towers

If the floater has corner (offset column) tubular towers then it can have a tubular tower on only one column or on all. The towers can be placed on offset columns or on center columns

Options:

1 (default):

A tower is only placed on one offset column.

All:

Towers are placed on all offset columns.

Main column

Diameter

The diameter of the main column.

  • Default value: 6.5
  • Unit: $\text{m}$
  • Range: 1e-06 — 1e+16

Thickness

The thickness of the main column's cross-section.


  • Default value: 0.03
  • Unit: $\text{m}$
  • Range: 0.001 — 10

Offset columns

Number of offset columns in a module

The semisub can have one or more modules. This is the number of offset (i.e. corner) columns in a module. So, if it is 3 the module shape is triangular, if it is 4 it is square etc. The minimum number is 3 and the maximum is 6.

  • Default value: 3
  • Unit:
  • Range: 3 — 6

Distance

The center-to-center distance from the center column to the offset columns.

  • Default value: 28.87
  • Unit: $\text{m}$
  • Range: 1e-06 — 1e+16

Upper diameter

The diameter of the upper section of the offset columns.

  • Default value: 12
  • Unit: $\text{m}$
  • Range: 1e-06 — 1e+16

Upper thickness

The cross-section thickness of the upper part of the offset columns.


  • Default value: 0.06
  • Unit: $\text{m}$
  • Range: 0.001 — 1

Heave plate rel. height

The relative height of the heave plate, i.e. given as a percentage of the total height. Default: 10%. Min: 1%. Max: 50%.

  • Default value: 10
  • Unit: $\text{%}$
  • Range: 1 — 50

Heave plate diameter

The diameter of the base of the offset columns.

  • Default value: 24
  • Unit: $\text{m}$
  • Range: 1e-06 — 1e+16

Heave plate (base) thickness

The thickness of circular cross section at the base of the offset columns, i.e. the heave plates. Default: 60mm. Min: 1mm. Max: 100mm.


  • Default value: 0.06
  • Unit: $\text{m}$
  • Range: 0.001 — 100

Pontoons and Cross braces

Diameter

The diameter of the cross braces.

  • Default value: 2
  • Unit: $\text{m}$
  • Range: 1e-06 — 1e+16

Thickness

The cross-section thickness of the cross braces.

  • Default value: 0.04
  • Unit: $\text{m}$
  • Range: 1e-06 — 1e+16
