ULS sensor

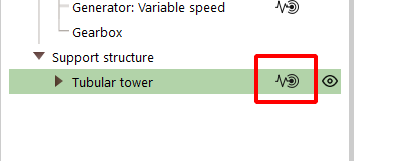

The ULS sensor can be added by clicking the sensor button in a Support structure part as shown in the figure below





Note: mooring systems cannot have a ULS sensor

The ULS sensor provides the followin fields:
FieldUnitDescription
Max. normal stressMPaAt any given point in time, the maximum value of normal stress for all the elements composing the support structure. Normal stress is computed according to the equations described in the Stresses and responses document
Max. normal stress (perc.)%Maximum normal stress as a percentage of the yield stress for steel, currently set at 355 MPa.
